Seal Sheet |
|
|

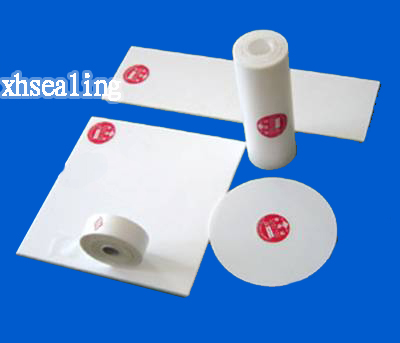

PTFE sheet
|
Description: PTFE product includes sheet, Tube , Rod, Film and gaskets etc., they are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics. Without being aging, lowest friction coefficient, wear resistance. The unloaded operating temperature range is -180~+260C.
|
|
| |
| Filled PTFE Sheet |
The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber, carbon fiber and graphite etc. The filled PTFE has improved compression strength, better abrasion resistance, high thermal conductivity and lower thermal expansion compared with pure PTFE products.
|
| |
Function characteristics： |
PROPERTIES & APPLICATION:
Products |
Tensile Strength |
Pressure
Mpa |
Density
g/cm3 |
Temperature
℃ |
PTFE Sheet |
15Mpa |
1.6 |
2.1~2.3 |
-196 ~ 260 |
Filled PTFE Sheet |
10Mpa |
4.0 |
2.1~2.3 |
-196~ 260 |
EPTFE sheet |
Gore, Klinger, Garlock, Sealon etc., According to manufacturer |
Seal materials, electrical insulation parts, lining, oil less lubricating materials etc.
NORMAL DIMENSION:
Size(mm) |
Thickness(mm) |
tolerance |
150X150 |
1.0~30 |
±0.30~±0.50 |
250X250 |
1.0~30 |
±0.30~±0.50 |
300X300 |
1.0~30 |
±0.30~±0.50 |
450X450 |
1.0~30 |
±0.30~±0.50 |
600X600 |
1.0~30 |
±0.30~±0.50 |
800X800 |
1.0~30 |
±0.30~±0.50 |
1000X1000 |
1.0~30 |
±0.30~±0.50 |
1200X1200 |
1.0~30 |
±0.30~±0.50 |
1500 X 1500 |
1.0~35 |
±0.30~±0.60 |
2000 X 2000 |
1.0~5.0 |
±0.20~±0.30 |
2500 X 2500 |
1.0~5.0 |
±0.20~±0.30 |
|
|
|
|
|
| |
|
